ET16

Make	Wacker Neuson
Model	ET16

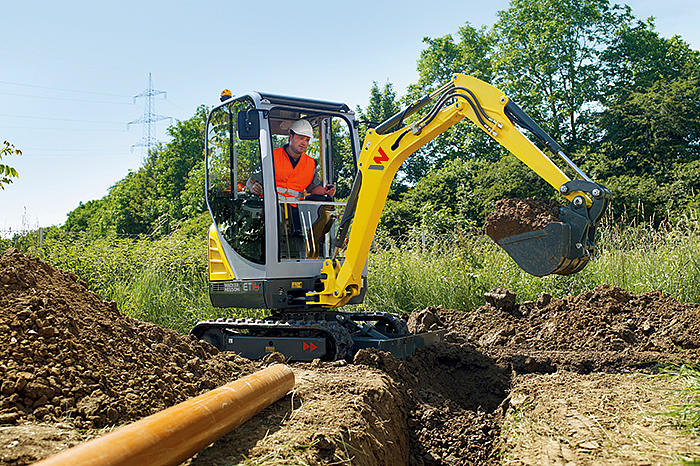

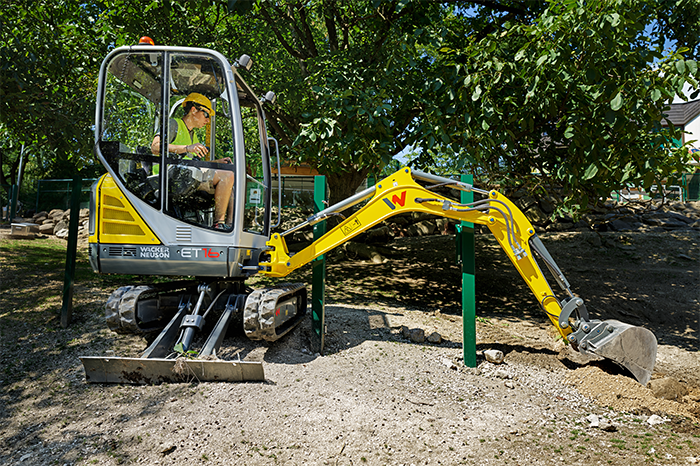

The ET16 offers the most powerful drive and largest cab in its class, plus offers flexibility when there is little space to operate. The swivel boom provides the ability to excavate near buildings and job site obstructions, while maintaining great visibility. The ability to move the machine with a small trailer from site to site makes it perfect for landscape projects. Fast transport speeds gets you from place to place on the job site to complete more tasks in less time.

Load sensing hydraulic system (LUDV) ensures consistent flow regardless of RPM or load changes, providing excellent results when precision matters.
Large engine hood and removable covers for easy service access.
Spacious and comfortable cab offers superb all-around visibility as well as leg and headroom.
Compact footprint is enhanced with telescopic undercarriage and folding dozer blade extension.
Standard auxiliary hydraulics for easy operation of various attachment tools.

Operating data
Shipping weight min.	3,090.9 lb
Operating weight	3,370.83 – 3,791.91 lb
Biting force max.	1,776 lbf
Breakout force max.	3,439.6 lbf
Digging depth max.	95 in
Dumping height	93.3 – 99.1 in
Digging radius max.	152.01 in
Superstructure slewing speed	9.8 rev/min
L x W x H	143 x 39 x 90 in
Engine / Motor
Engine / Motor manufacturer	Yanmar
Engine / Motor type	3TNV80F
Engine / Motor	Water-cooled 3-cylinder diesel engine
Displacement	68 in³
RPM / speed	2,200 rpm
Engine performance acc. to ISO	17.6 hp
Battery	44 CCA
Fuel tank capacity	25.3 US gal
Hydraulic system
Duty pump	Gear pump
Flow rate	9.11 US gpm
Operating pressure for working and traction hydraulics	2,901 psi
Operating pressure Slewing gear	1,885.5 psi
Undercarriage
Travel speed	2.54 mph
Chain width	9.1 in
Ground clearance	7.1 in
Dozer Blade
Width (folded in)	39 in
Height	8.5 in
Stroke max., above ground	9.3 in
Stroke max., below ground	10.6 in
Sound level
Sound level (LwA) acc. to 2000/14/EC	93 dB(A)
Cabin – specified sound pressure level LpA	79 dB(A)

ET16 Model variations

1000358720

E1700 Standard Machine

Track excavator, ET16, canopy, standard dipperstick, telescopic undercarriage
1000358720

E1701 Standard Machine, long dipperstick

Track excavator, ET16, canopy, long dipperstick, telescopic undercarriage
1000358720

E1702 Standard Machine, Cab

Track excavator, ET16, cab, standard dipperstick, telescopic undercarriage
1000358720

E1703 Standard Machine, Cab, Long Dipperstick

Track excavator, ET16, cab, long dipperstick, telescopic undercarriage
