WL32

Make	Wacker Neuson
Model	WL32

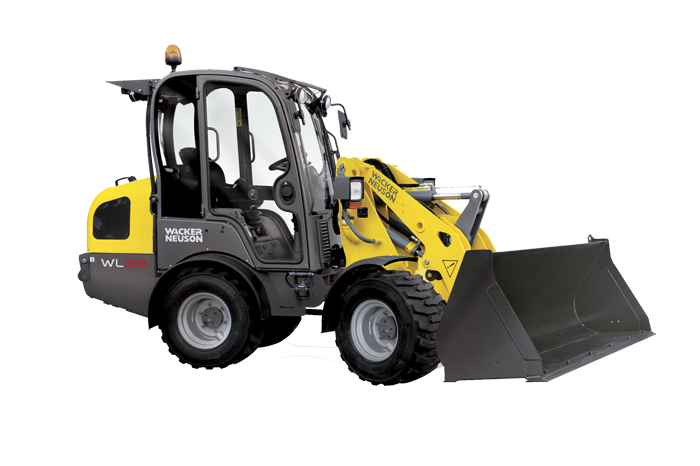

2019 Wacker Neuson WL32 Cab

The WL 32 is equipped with a powerful Perkins 4-cylinder, Tier IV Final diesel engine that delivers high performance. Available with either a 48-hp or 60-hp designed for maximum efficiency. This articulating wheel loader features a modern cab design ensuring panoramic visibility with excellent headroom and freedom of movement. With the universal attachment plate, Faster Hydraulic Block and 14-pin auxiliary electrical harness all standard, operating attachments is quick and easy.

Features may include:

Universal attachment plate accepts most existing skid steer attachments.

Standard aux hydraulic flow of 16 gpm with 28 gpm high flow option

Compact design with 48-inch width (narrow tires required), is ideal for maneuvering on sidewalks

Operators station is easily accessible from both sides for added convenience. Ergonomically shaped and spring mounted seat is designed for operator comfort and added productivity. Choice of canopy or cab.

Excellent visibility; infinitely adjustable steering column; platform is side tilting for better serviceability

	Canopy	Cab	Cab
Engine / Motor
Engine / Motor manufacturer	Perkins	Perkins	Perkins
Engine / Motor type	404 F-22	404 F-22	404 F-22T
Cylinder	4	4	4
Engine performance hp	49	49	60
at rpm maximum rpm	2,600	2,600	2,600
Displacement in³	135	135	135
Coolant type	Water	Water	Water
Electrical system
Operating voltage V	12	12	12
Battery Ah	95	95	95
Alternator A	85	85	85
Weights
Operating weight lb	7,496
Lifting force maximum lb	4,292	4,292	4,292
Breakout force maximum lbf	9,597	9,597	9,597
Vehicle data
Bucket capacity Standard bucket yd³	0.59	0.59	0.59
Traction drive	Hydrostatic with universal joint shaft	Hydrostatic with universal joint shaft	Hydrostatic with universal joint shaft
Axles	PA 940	PA 940	PA 940
Drivers cab	Canopy	Cabin	Cabin
Speed (standard) mph	0-12.4	0-12.4	0-12.4
Speed Level	2	2	2
Standard tires	31×15.5-15EM ET-37	31×15.5-15EM ET-37	31×15.5-15EM ET-37
Hydraulic system
Driving hydraulics – operating pressure psi	6,527	6,527	6,527
Operating hydraulics – operating pressure psi	3,046	3,046	3,046
Operating hydraulics – discharge capacity US gpm	14.8	14.8
Operating hydraulics – discharge capacity US gpm			26.4
Filling capacities
Fuel tank capacity US gal	16.9	16.9	16.9
Tank capacity – Hydraulic US gal	37	37	37
Sound level
Average sound power level LwA dB(A)	99.8	99.8	99.8
Guaranteed sound power level LwA dB(A)	101	101	101
Specified sound pressure level LpA dB(A)	82	82	82
